Main Image

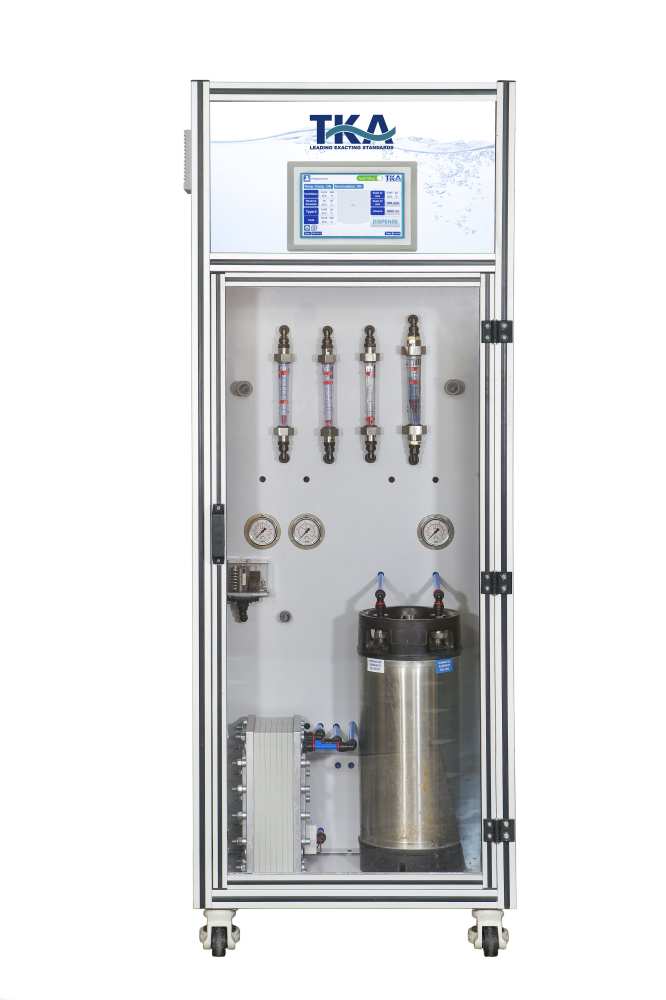

EDIRYX Ultra


Specification

Specification Value or Range
Pressure 2 - 6 bar
Flow rate 500 - 2500 ltr/hr (Not for customized flow rate systems)
Feedwater Type Potable Tap Water
Conductivity < 2500 µS/cm at 25 °C
pH 4 - 10
Hardness (ppm) upto 800 (With Mix Multi XL)
Silica (ppm) < 30
CO2 (ppm) < 30
Silt Density Index < 12
Free Chlorine (ppm) < 3
Total Organics (TOC, ppb) < 2000
Specification Feedwater Specification Value or Range
Pressure 2 - 7 bar
Flow rate 500 - 2500 ltr/hr (Not applicable for customized systems)
Specification Value or Range
Pressure 2 - 7 bar
Specification
Feedwater Specifications
Parameter Value or Range
Feedwater Type Potable tap water
Conductivity < 2500 μS/cm
pH 4 - 10
Hardness ppm upto 800ppm (with Mix Multi XL)
Silica < 30ppm
CO2 < 30ppm
SDI (Silt Density Index) <12
Free Chlorine < 3ppm
TOC (Total Organics) < 2000ppb
Pressure 2 - 6 bar
Flow 500 - 2500 ltr/hr

Technology

Hydropurilexology

Hydropurilexology™ – The Science of Water, Purification & Intelligence

At the heart of EDIRYX lies Hydropurilexology™, our proprietary framework that unites water chemistry, advanced purification technologies, precision instrumentation, intelligent control, and complete data representation into one integrated science.

It ensures not only the highest purity water, but also delivers:
• Secure, multi-level user logins
• Automatic data logging & audit trails
• Real-time water quality monitoring
• Event, error, and consumable replacement tracking

Hydropurilexology™ integrates multiple purification stages, including:

• Reverse Osmosis (RO): Primary desalination and impurity removal
• Electrodeionization (EDI): Continuous polishing to ultrapure levels
• Ultraviolet (UV): Dual wavelength for TOC reduction (185 nm) and microbial control (254 nm)
• TOC Monitoring: Real-time assurance of organic contamination levels
• Programmable Dispensing: Accurate, calibrated volume delivery
• Integrated Automated Disinfection System (ADS)

A key pillar of Hydropurilexology is the Automated Disinfection System (ADS). ADS ensures that every drop of water in tank remains bacteria free, without manual intervention. By combining sensor-driven monitoring, timed UV and/or chemical disinfection cycles if required, and automated alerts, ADS guarantees:

• Continuous microbial control across storage tanks and pipelines
• Minimal maintenance intervention.
• Seamless integration with central monitoring systems, plus automated documentation of disinfection cycles for compliance and audits
• With ADS embedded in Hydropurilexology, laboratories and high-end facilities benefit from complete, automated water hygiene, complementing the precision, efficiency, and intelligence of the entire water purification system.

With Hydropurilexology™, purification goes beyond hardware — it becomes a total ecosystem of water, intelligence, and compliance, perfectly aligned with EDIRYX™’s promise of Leading Exacting Standards.
